Continuous Casting with Air-Oil Systems

Air/Oil in casting applications is a relatively new invention that has greatly increased the life of caster bearings.

Typical Characteristics of the Casting Application
Casting applications typically have bearings with slow rotation and high temperatures. It is a corrosive process and there is a high probability of water ingress due to the environment.

Air/Oil in casting applications is a relatively new invention that has greatly increased the life of caster bearings. By the Minimal Lubrication approach a constant air stream is supplied to the caster bearing housing that keeps it under constant positive pressure. Then, using specialist Dropsa components, oil is injected into the air stream that brings a micro quantity of oil to the bearing.

Dropsa has been a pioneer of Air / Oil technology in these applications and is a strong promoter of volumetric technology in metering of micro oil quantities.

Unlike other systems that have restrictive “splitter” devices to attempt to divide the air/oil mixture, the Dropsa volumetric approach allows you to have full assurance, with electronic monitoring and confirmation, that the exact amount of micro oil lubrication reaches every single point. Many of our customers who have used splitter type devices in the past have been amazed by the performance they have achieved using volumetric Air/oil lubrication

Dropsa has provided both new systems to machine manufactures but has also handled complete system design and projects to convert existing grease casting applications to air/oil applications.

Get in touch with your Dropsa contact today to learn how to apply this technology to your application


System Overview

  • Total Number of Points: from 300 to 1000 points

  • Total Number of Segments: from 12 to 36

  • Lubricant : CLP 220 ÷ 460 Cst

  • Total Oil Volume per cycle: 0,04 ÷ 0,08 cm³/point

  • Operating Frequency: from 5 to 10 minutes

  • Length of system: 25mt


​This case application was implemented using :


Benefits Achieved

  • Increased bearing life by over 10 times

  • Productivity increased many times over due to reduced changeouts

  • 100% monitoring of Oil injection to every single lubrication point

  • Monitoring of Air Flow and consumption

  • Quick diagnostic of any potential problems

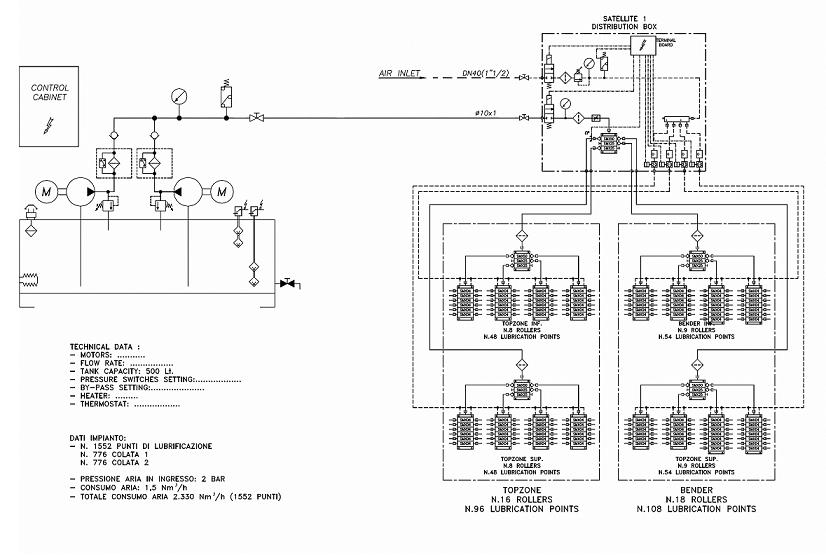

System Design

Continuous Casting with Air-Oil Systems
