Description
Key features:
- Air MIN pressure 3 bar(44.1 psi)
- Air MAX pressure 10 bar(147 psi)
- Driving voltage 24 Vcc -110 Vac
- Power absorption 4 W
- Driving-air inlet 1/4″ gas
- Lubricant outlet 1/2″ gas cone

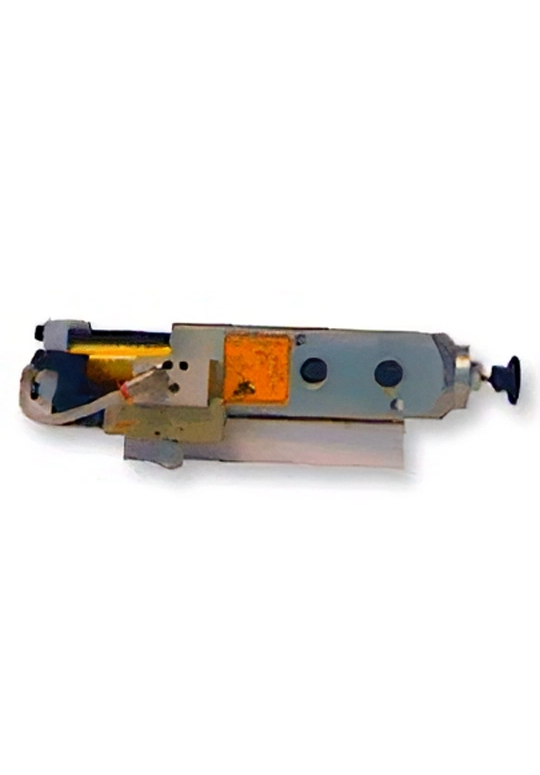

This valve has been designed to control lubricant flow (oil and grease). Piston is made of hardened and ground steel. It is driven by a pneumatic cylinder controlled by a 4-way solenoid valve. This device is normally used in dual line lubrication systems, where the system is provided with two pumps, one is a backup.
