Description
Key features:
- Voltage: 24V DC
- Max flow rate: 400cc/min
- Max working pressure: 400 bar
- Temperature of use: – 10 ÷ + 50 °C (+14 ÷ +122F)
- Storage temperature: – 40 ÷ +65 °C (+40 ÷ +149F)

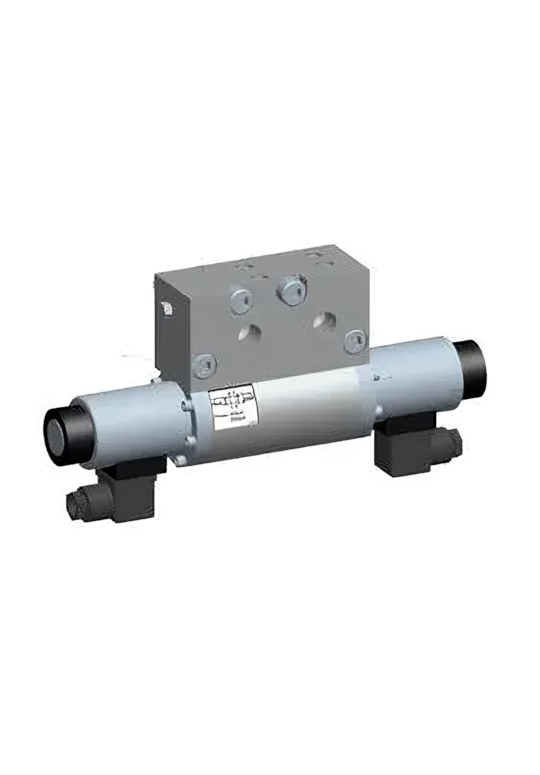

The Electromagnetic valve 4/2 has been designed to control supply lubricant in dual line systems. This valve is able to operate with MAX NLGI 2 grease, with 400 bar max pressure (5880 psi).
A lubrication cycle is completed when both the principal lines alternatively pressurize and depressurize.
