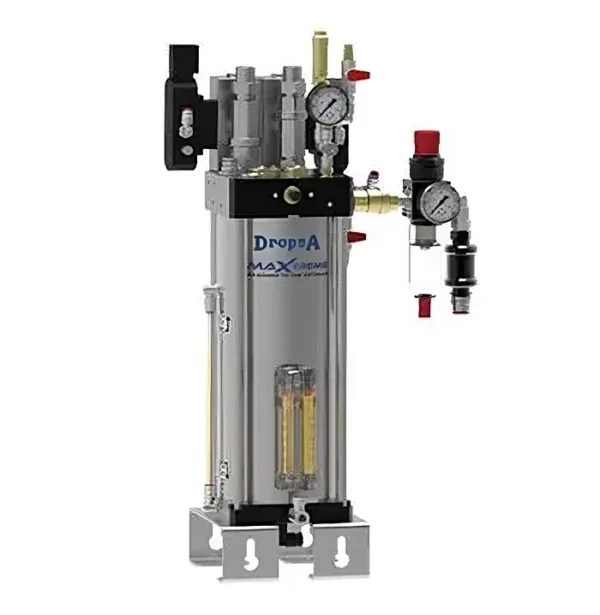

MaXtreme

MaXtreme is the minimum quantity lubrication (MQL) system designed for the dry lubrication both inside and outside the tools, with a completely new approach to the single or double generator aerosol generation technology patented by DropsA.

Learn more at DropsA.com
Category:

Description

Key features:

  • Min. working diameter LP nozzle: (6 bar) 2 mm (7000 Nl/h) (247 cfh)
  • Minimum working diameter HP nozzle: (20 bar) 0.8 mm(3500 Nl/h) (123 cfh)
  • Reservoir capacity: 2 litres (0.50 gallons)
  • Air supply hose: Ø12mm.(0.47 in)
  • Usage tube: Ø12 ÷ 16 mm (0.47 ÷ 0.6 in.)
  • Number of aerosol outlets: 1~3

MaXtreme is the ready-for-use solution for the most demanding and high performance near-dry processing that requires minimum external or internal lubrication.

High pressure utensils will no longer be needed straight away and neither will water collection trays. Consequently, there will be no further need to dispose of the lubricant-coolant liquid. The reduction of costs is therefore immediate and clear from the first work cycle.

Thanks to a completely new approach to the aerosol generation technology, MaXtreme is revolutionizing the installations and the MQL machining of new and existing machines.

ADVANTAGES:

  • Reduces your cycle time
  • Longer utensil life
  • The mixture of aerosol prevents the overheating of the utensil.
  • Better finishing of the pieces: thanks to a more complete and adequate lubrication through the utensil.
  • Optimization of investments: there is no need to have high or low pressure trays and no filtering systems are required.

APPLICATIONS
Near dry high performance MQL machining applications.
MaXtreme – MQL lubrication system – is easy to install, even on machines that are already in operation. It requires few hours of machine stoppage.
